| Width of upper film | 498 mm | Vacuum | ≤ 200 Pa |
| Width of lower film | 523 mm | Compress air | ≥ 0.6 Mpa |
| Speed | 3-4 p/min | Capacity | 14-20 KW |
| Power | 380 V/50 Hz | Dimensions | 8000×1950×2050 mm |
| Width of upper film | 498 mm | Vacuum | ≤ 200 Pa |
| Width of lower film | 523 mm | Compress air | ≥ 0.6 Mpa |
| Speed | 3-4 p/min | Capacity | 14-20 KW |
| Power | 380 V/50 Hz | Dimensions | 8000×1950×2050 mm |

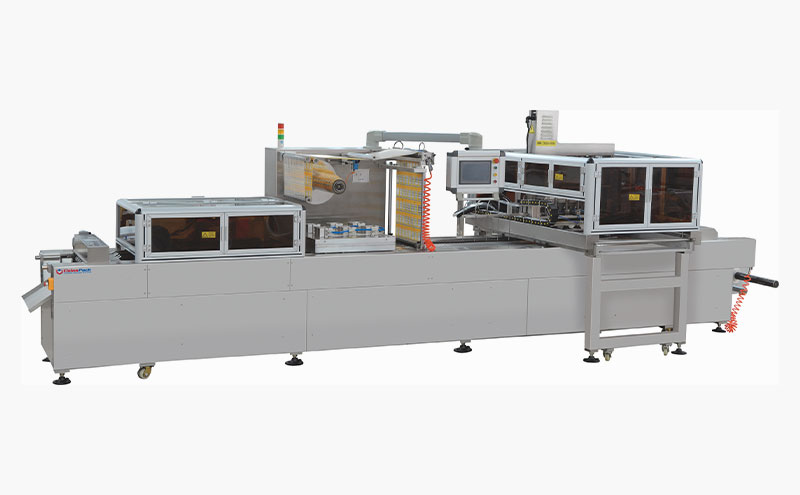

The UN-520DLSM Full-automatic Thermoforming Packaging Line is a packaging line consisting of a fully automatic continuous stretch film vacuum packaging machine and an automatic feeding machine. It is designed for various pickled vegetable products such as pickled mustard, pickled vegetable strips, and pickled mushrooms, as well as meat products and spicy granular products.
This machine has a range of functions, including upper and lower film molding, automatic feeding, oil adding, vacuuming, sealing, coding, cutting, and discharge, all completed in one step. The PLC touch screen control system and user-friendly interface make the operation simple and intuitive.
Thanks to its high efficiency, this Thermoforming Packaging Line is capable of producing more than 6,000 bags per hour with two operators (based on bags measuring 100*70mm). In addition, the automatic feeding machine and the parts that come in contact with food are made of food-grade 304 stainless steel, making it easy to clean with water and detergent.
Overall, the UN-520DLSM Full-automatic Thermoforming Packaging Line is an ideal solution for companies that need to package various pickled vegetable products, meat products, and spicy granular products. Its automation and user-friendly design make it a valuable addition to any production line.
| Model | UN-520DLSM | ||
| Width of upper film | 498 mm | Filling weight arrange | 10 g - 50 g |
| Width of lower film | 523 mm | Filler number | 4-5 filler number |
| Vacuum | ≤ 200 Pa | Inflation port | Ø 16 PU tube |
| Compress air | ≥ 0.6 Mpa | Cooling water | ≥ 0.15 Mpa |
| Gas consumption | ≥ 0.7 m³/min | Power | 380 V/50 Hz |
| Fill up gas pressure | ≥ 0.2 Mpa | Capacity | 14-20 KW |
| Speed | 3-4 p/min | Dimensions | 8000×1950×2050 mm |
| Pack accuracy | ≤ ± 1 g | Weight | 2700 kg |
| Width of upper film | 398 mm | Vacuum | ≤ 200 Pa |
| Width of lower film | 423 mm | Compress air | ≥ 0.6 Mpa |
| Speed | 4-6 p/min | Capacity | 12-18 KW |
| Power | 380 V/50 Hz | Dimensions | 2250 kg |
| Bag Length Range | 150-450mm | Max Speed | 50-190 bags/min |
| Bag Width Range | 25-110mm | Power Supply | 220V 50-60Hz |
| Bag Height Range | < 50mm | Total power | 3kw |
| Max. Dia of Film | Ø350mm | Machine Weight | 750kg |
