Gluing type or Tabs folding all can be done Horizontal type or vertical type feeding with different feeder
Max speed to 120 boxes/min
Box width from 15mm to 260mm with different models
| Encasing Speed | 40-70 Boxes/min | Power supply | AC220V/380V 50Hz |
| Quality requirement | 250-350 g/㎡ | Total power | 1.5 KW |
| Working pressure | ≥ 0.6 Mpa | Overall dimension | 3500×1500×1900mm |
| Air consumption | 20 m³/h | Machine weight | 1000 kg |
| Encasing Speed | 80-150 Boxes/min | Power supply | AC220V/380V 50Hz |
| Quality requirement | 250-350 g/㎡ | Total power | 1.5 KW |
| Working pressure | ≥ 0.6 Mpa | Overall dimension | 5000×1840×1680mm |
| Air consumption | 20 m³/h | Machine weight | 2000 kg |
| Encasing Speed | 30-120 Boxes/min | Power supply | AC220V/380V 50Hz |
| Quality requirement | 250-350 g/㎡ | Total power | 1.5 KW |
| Working pressure | ≥ 0.6 Mpa | Overall dimension | 4500×1550×1800mm |
| Air consumption | 20 m³/h | Machine weight | 1500 kg |
| Encasing Speed | 33-120 Boxes/min | Power supply | AC220V/380V 50Hz |
| Quality requirement | 250-350 g/㎡ | Total power | 1.5 KW |
| Working pressure | ≥ 0.6 Mpa | Overall dimension | 4500×1550×1800mm |
| Air consumption | 20 m³/h | Machine weight | 1500 kg |
| Encasing Speed | 80-100 Boxes/min | Power supply | AC220V/380V 50Hz |
| Quality requirement | 250-350 g/㎡ | Total power | 6.0 KW |
| Working pressure | ≥ 0.6 Mpa | Overall dimension | 6500×2000×1800mm |
| Air consumption | 20 m³/h | Machine weight | 3000 kg |

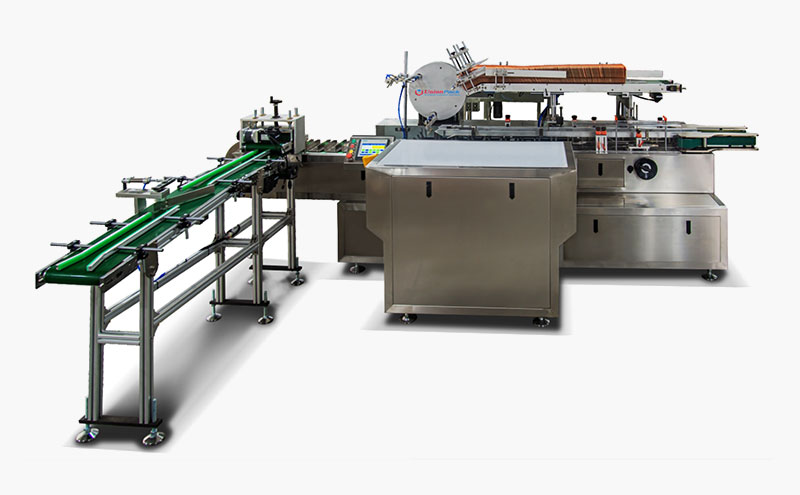

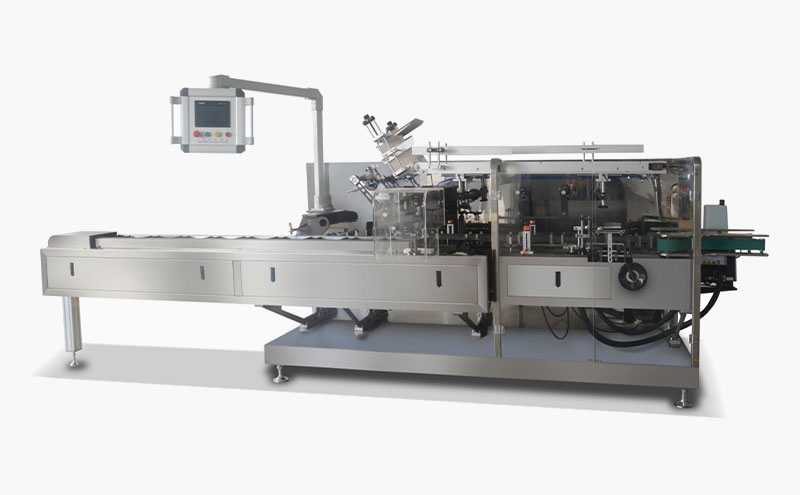

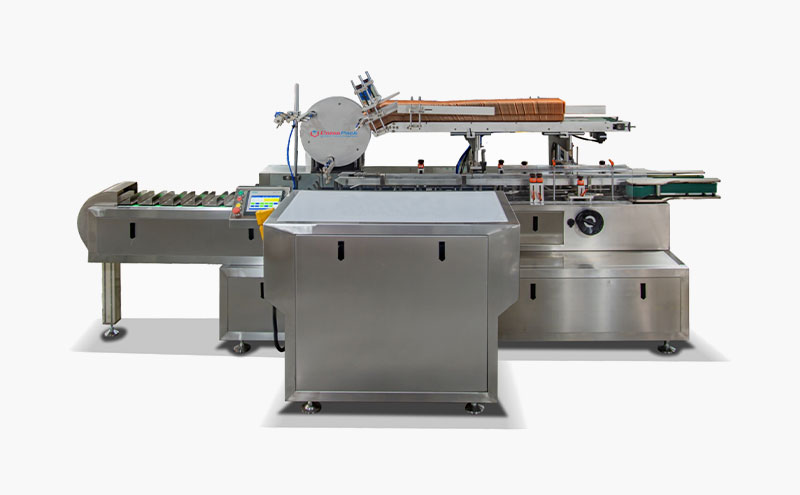

In today's competitive landscape, industries such as food and beverage, pharmaceuticals, and cosmetics require efficient and reliable packaging solutions. Our Carton Packing Machine is designed to meet these demands, providing an automated packaging solution that boosts productivity while reducing labor costs.
This versatile machine automates the sealing of boxes in various shapes and sizes, significantly enhancing production efficiency. It can function as both a terminal or upstream device for bundling and box packing and operates independently as a standalone unit, allowing for seamless integration into your existing production line.
* Key Features:
- Seamless Operation: The Automatic Cartoning Machine enhances flexibility in your production process, adapting to your specific needs.
- User-Friendly Design: Featuring a simple and intuitive interface, it ensures easy operation and minimal downtime during setup.
- Automated Loading and Unloading: This feature boosts overall production efficiency while lowering labor costs, allowing your team to focus on strategic tasks.
- High Reliability: Built with quality components and advanced technology, our machine runs consistently, minimizing downtime and maintenance costs. This reliability also protects your products from damage during packaging.
* To ensure optimal performance, we prioritize high-quality carton paper for our machines. We utilize:
- White Cardboard: 250–350 g/m²
- Gray Cardboard: 250–400 g/m²
The quality of the cartons used is crucial, impacting the final product's quality and the smooth operation of the machine. Our strict requirements encompass both the material and the manufacturing process.
* Versatile Applications
Our Carton Packing Machine is perfect for a variety of industries, including:
- Daily Necessities: Efficiently packaging everyday products.
- Cosmetics: Ensuring high-quality presentation and protection.
- Pharmaceuticals: Meeting stringent hygiene standards.
- Food: Keeping products fresh and appealing.
- Stationery: Packaging office supplies efficiently.
* Advanced Control Systems
Equipped with a PLC and touch screen, our machine offers advanced features such as:
- Alarm Stop for Missing Bottles: Safety devices to ensure no product goes unpackaged.
- Automatic Sorting: Efficiently organizes products for packing.
- Compact Structure: Novel design allows for easy mobility and integration.
* After-Sales Support
Choosing our Carton Packing Machine grants you access to exceptional after-sales service. Our professional team offers lifelong technical support, including training, repairs, and maintenance, ensuring your machine operates reliably over the long term.
* Conclusion
Investing in our Carton Packing Machine means choosing a reliable, efficient, and versatile packaging solution designed for modern production needs. With its advanced features, user-friendly design, and commitment to quality, our machine is the key to enhancing your packaging process and maintaining a competitive edge in the market. Upgrade your operations today with our state-of-the-art Carton Packing Machine!
GET A QUOTE
