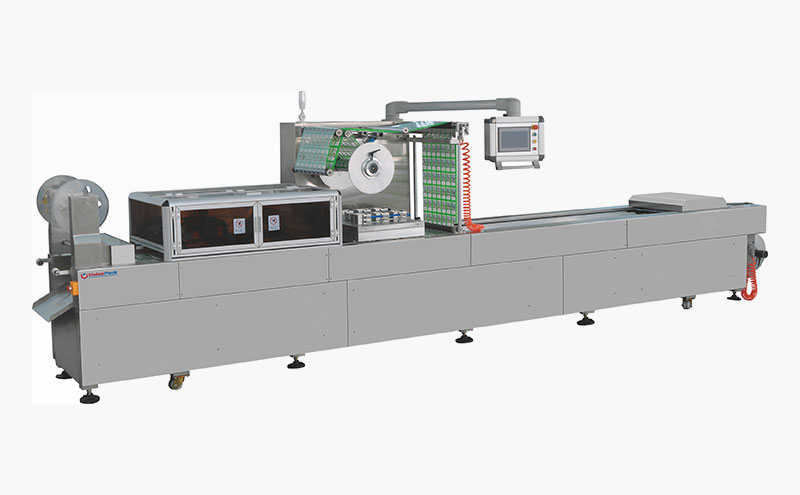

The UN-420Y/520YLSM automatic double-sided stretch vacuum packaging machine is a high-end thermoforming vacuum packing machine designed for a variety of packaging needs. Equipped with advanced technology and imported components, it provides precise control and efficient performance for various food products, medical devices, and hardware components.
1. Mitsubishi PLC computer control system with a large true-color human-machine interface touchscreen and sliding control screen design.
2. Japanese Yaskawa servo motor control system provides high-speed and high-precision step-by-step movement.
3. Temperature computer control system with intelligent heating function and precise water-cooling temperature control.
4. Imported photoelectric tracking system (German SICK) ensures accurate positioning of graphic patterns using colored film.
5. German-made BUSCH RA0202D environmentally-friendly vacuum pump provides strong vacuum power and high vacuum degree.
6. German-made WITT gas mixer ensures the quality and installation of gas-adjusted products.
7. Japanese imported special-shaped knife mold ensures a beautiful and elegant product appearance.
8. All pneumatic components use Japanese SMC pneumatic system with electromagnetic valves.
9. Servo traction uses Italian imported sewing strips (Regina).
10. Combination sealing mold with integrated sealing pad (German imported silicone).
11. Imported electrical components.
12. The upper and lower films use left-right correction function, automatic film feeding, and tensioning system.
13. Multiple waste recovery systems (screw reciprocating type, whole board film collection type).
The UN-420Y/520YLSM automatic double-sided stretch vacuum packaging machine is suitable for vacuum, inflation, and body-packing of various food products, fish tofu, single-grain and double-grain dried tofu, betel nut, spicy food, meat products, seafood, fruits and vegetables, pickles, chilled meat, medical products, hardware components, and medical equipment.
In summary, the UN-420S/520SLSM thermoforming vacuum packing machine is an excellent choice for businesses seeking advanced technology, precise control, and efficient performance for a variety of packaging needs.
|
Model |
UN-420YLSM |
UN-520YLSM |
|
Width of upper film |
398 mm |
498 mm |
|
Width of lower film |
423 mm |
523 mm |
|
Vacuum |
≤ 200 Pa |
≤ 200 Pa |
|
Compress air |
≥ 0.6 Mpa |
≥ 0.6 Mpa |
|
Gas consumption |
≥ 0.6 m³/min |
≥ 0.6 m³/min |
|
Fill up gas pressure |
≥ 0.2 Mpa |
≥ 0.2 Mpa |
|
Speed |
4-6 p/min |
4-6 p/min |
|
Inflation port |
Ø 16 PU tube |
Ø 16 PU tube |
|
Cooling water |
≥ 0.15 Mpa |
≥ 0.15 Mpa |
|
Power |
380V/50 Hz |
380V/50 Hz |
|
Capacity |
12-18 KW |
12-18 KW |
|
Dimensions |
8000×1085×2000mm |
8000×1185×2000mm |
|
Weight |
2250 kg |
2450 kg |
