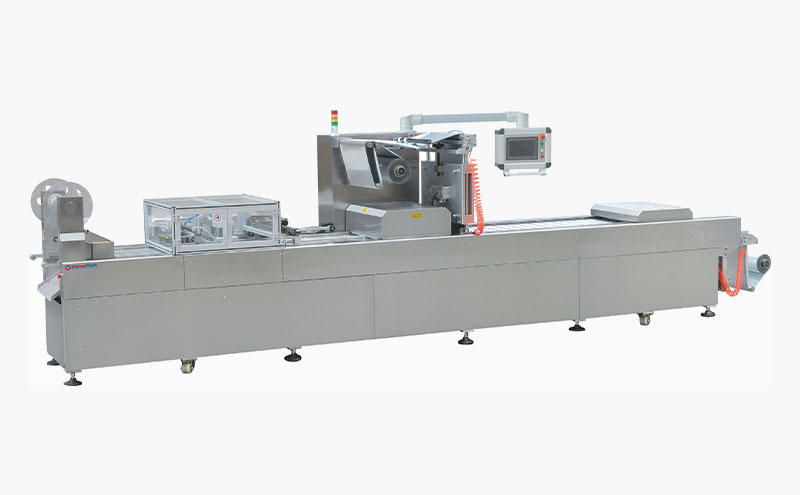

The UN-420S/520SLSM Thermoforming vacuum packaging machine is a high-quality packaging machine with advanced features and configurations. It is designed for packaging various products, including food, medical products, hardware components, and more. Here are the configurations and functions of the machine:
The UN-420S/520SLSM Thermoforming vacuum packaging machine is suitable for packaging various products, such as food, fish tofu, single and double-grain soy products, betel nut, spicy food, meat products, seafood, fruits and vegetables, pickles, chilled meat, medical products, hardware components, and medical equipment, using vacuum, inflation, and body packaging.
model |
UN-420SLSM |
UN-520SLSM |
Width of upper film |
398 mm |
498 mm |
Width of lower film |
423 mm |
523 mm |
Vacuum |
≤ 200 Pa |
≤ 200 Pa |
Compress air |
≥ 0.6 Mpa |
≥ 0.6 Mpa |
Gas consumption |
≥ 0.6 m³/min |
≥ 0.6 m³/min |
Fill up gas pressure |
≥ 0.2 Mpa |
≥ 0.2 Mpa |
Speed |
4-6 p/min |
4-6 p/min |
Inflation port |
Ø 16 PU tube |
Ø 16 PU tube |
Cooling water |
≥ 0.15 Mpa |
≥ 0.15 Mpa |
Power |
380V/50 Hz |
380V/50 Hz |
Capacity |
12-18 KW |
12-18 KW |
Dimensions |
8000×1085×2000mm |
8000×1185×2000mm |
Weight |
2250 kg |
2450 kg |
