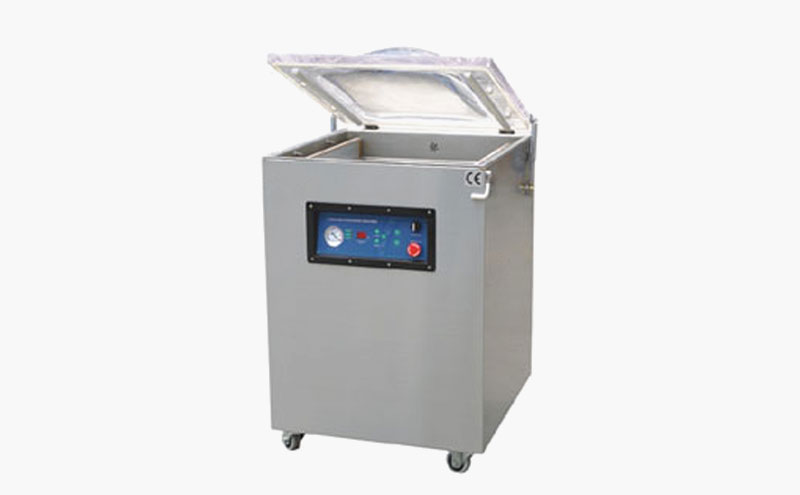

XD600E Vacuum Packager

Capacity	40m3/h	Power supply	1.5KW
Cycle time	10-35sec	Single sealing-bar	600×10mm (600E/A)
Voltage	1phase 380V/50Hz	Double sealing-bar	600×10mm (600E/B）

Inquire Now

Description

◆Stainless-steel vacuum chamber

Chamber size: 625×625×100mm

Single sealing-bar: 600×10mm (XD600E/A)

Double sealing-bar: 600×10mm (XD600E/B)

◆Vacuum pump

Capacity: 40m3/h

Cycle time: 10-35sec.

◆Machine

Table model, Stainless-steel housing, High transparent lid.

Voltage: 1phase 380V/50Hz

Power: 1.5KW

Machine size: 720×720×1050mm

◆Options

Gas flush, Busch pump, Other voltages available．

Main Specification

Stainless-steel vacuum chamber	Chamber size	625×625×100mm
	Single sealing-bar	600×10mm(600E/A)
	Double sealing-bar	600×10mm(600E/B）
Vacuum pump	Capacity	40m3/h
Vacuum pump	Cycle time	10-35sec
Machine	Voltage	1phase 380V/50Hz
	Power supply	1.5KW
	Machine size	720×720×1050mm
Table model, Stainless-steel housing, High transparent lid.
Options: Gas flush, Busch pump, other voltages available
