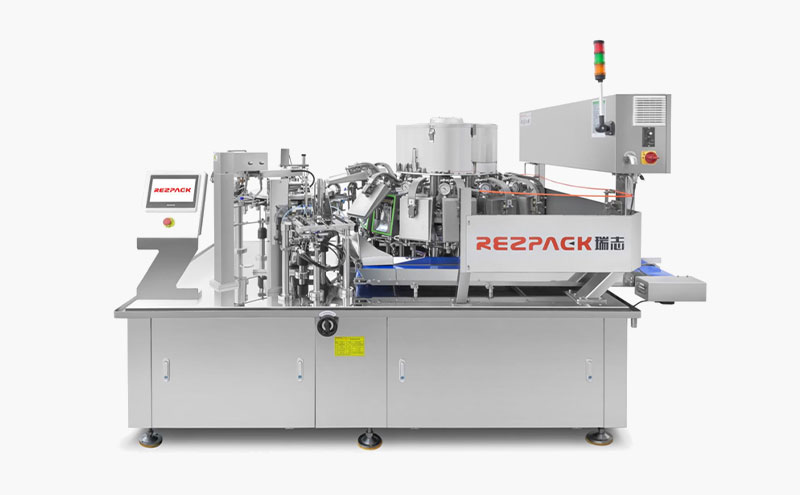

RZ10-100-14ZK Rotary Vacuum Packing Machine

RZ10-100-14ZK Rotary Vacuum Packing Machine
Bag Width Range 60-100 mm Weight 3000 kg
Bag Length Range 80-190 mm Total power 11.27 kw
Filling Range ≤200 g Compress air ≥ 0.5 m³/min
Max Speed ≤100 bags/min Dimensions 2610 mm*1800 mm*1800 mm

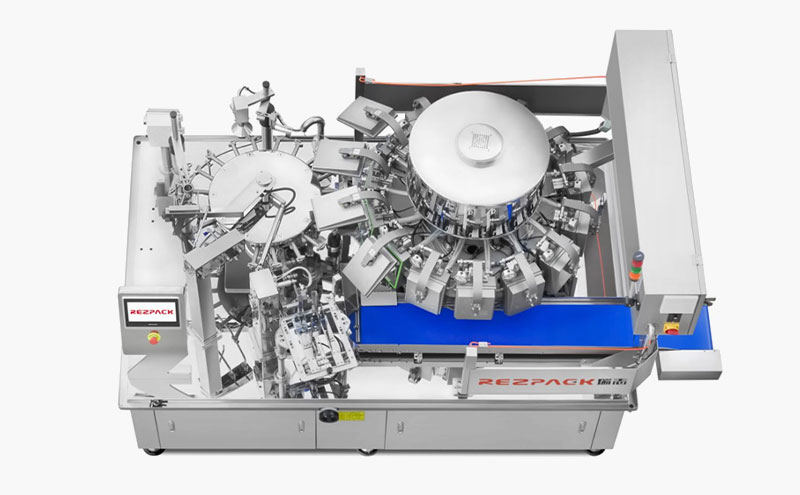

RZ10-100E-14ZK Rotary Vacuum Packing Machine is an automatic vacuum packing machine designed for a variety of products, making it a versatile option for various industries. The machine is capable of vacuum packaging various shapes, states, and natures of products, including rice, coarse grains, nuts, spicy snacks, and Chinese chestnut liquid, among others. The RZ10-100E-14ZK Rotary Vacuum Packing Machine is an automatic vacuum packing machine is equipped with a PLC controller and an HMI system, making it easy to operate. The machine can also be adjusted synchronously, and parameters for different products can be saved and available from a database when changing products.

Inquire Now
Description

Features of RZ10-100E-14ZK rotary vacuum packaging machine

One of the outstanding features of RZ10-100E-14ZK Rotary Vacuum Packing Machine is its high automation, as it completes all actions by a grooved clamp that is more durable than an end cam, and it does not need springs to return, making it more stable in running. Additionally, the RZ10-100E-14ZK rotary vacuum packaging machine has a perfect prevention system that ensures that when the bag is not open or not opened enough, it will be non-filling and non-sealing, so the empty bags return to the first station to refill, which helps to save production costs.



RZ10-100E-14ZK Rotary Vacuum Packaging Machine Hygiene and Safety

RZ10-100E-14ZK Rotary Vacuum Packing Machine is designed with sanitation and safety in mind, meeting the GMP standard. The machine is made of stainless steel and other materials that ensure cleanliness and safety in food processing. The RZ10-100E-14ZK rotary vacuum packaging machine is also equipped with an oil-free vacuum pump that avoids pollution in the production environment.



Waterproofness of RZ10-100E-14ZK rotary vacuum packaging machine

In addition to the above features, RZ10-100E-14ZK Rotary Vacuum Packing Machine has a waterproof design that allows for direct water-washing of the machine surface, making it easy to clean and prolonging its useful life.  The RZ10-100E-14ZK rotary vacuum packaging machine also adopts a concentrated oil-supplied lubrication device inside the grooved cam, making it more efficient in its operations.

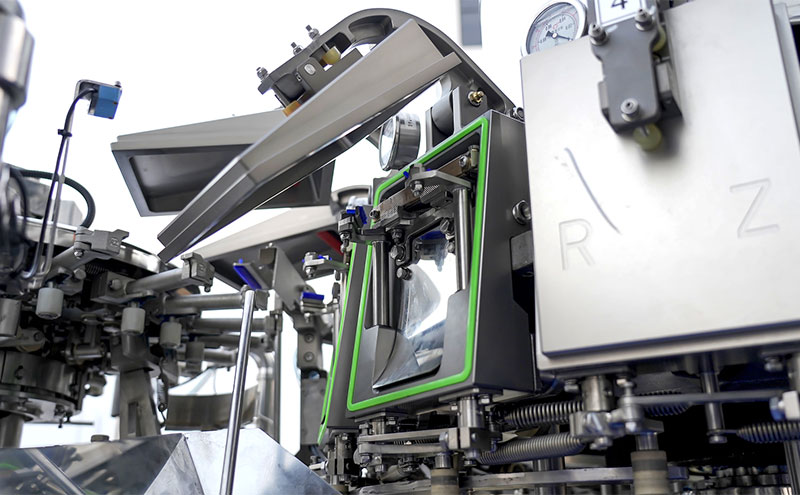

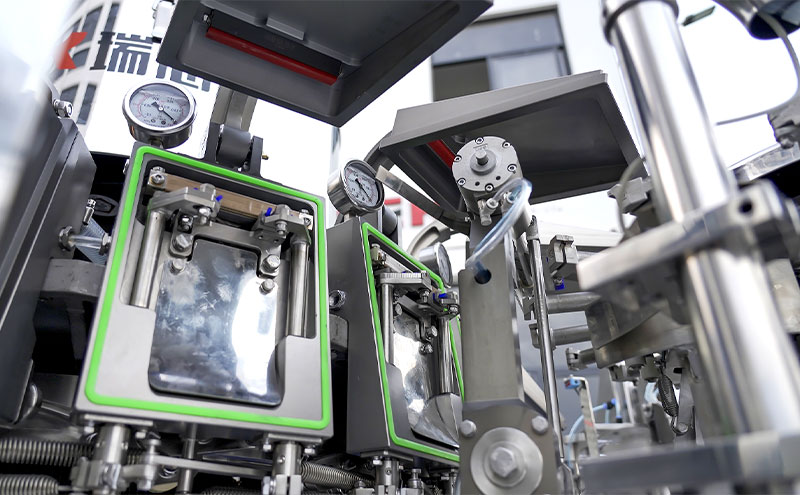

The RZ10-100E-14ZK rotary vacuum packaging machine is suitable for different bag types, including pre-made bags, and it provides high sealing quality, which upgrades the finished product. RZ10-100E-14ZK Rotary Vacuum Packing Machine has different workstations, which can be seen in the image below, making it easier to adjust the machine for different products.



Overall, RZ10-100E-14ZK Rotary Vacuum Packing Machine is a high-quality automatic vacuum packing machine that is suitable for various industries due to its wide applications, ease of operation, and perfect prevention system.

Main Specification

Equipment Model

RZ10-100E-14ZK Rotary Vacuum Packing Machine

Bag Size

W: 60-100 mm;  L: 80-190 mm

Filling Range

≤ 200  g

Packing Speed

≤ 100 bags/min (depending on products and bags materials)

Weight

3000   kg

Dimensions (L*W*H)

2610 mm*1800 mm*1800 mm

Total power

11.27 kw

Driving Power Source

380 V three-phase five line 50 HZ (other power can be customized)

Compress air requirement

≥ 0.5m³/min (Compressed air is provided by the customer)

Product Video
Related Machinery
pro
RZ10-M190 Rotary Premade Pouch Pick Fill Seal Machine
Bag Width Range 80-190 mm Weight 2000 kg
Bag Length Range 80-370 mm Total power 6.27 kw
Filling Range ≤ 500 g Compress air ≥ 0.5 m³/min
Max Speed ≤ 55 bags/min Dimensions 2300 mm*1950 mm*1560 mm
Inquire Now
pro
RZ10-130-14ZK Automatic Rotary Vacuum Packaging Machine
Bag Width Range 60-130 mm Weight 3100 kg
Bag Length Range 100-190 mm Total power 11.27 kw
Filling Range ≤ 300  g Compress air ≥ 0.5 m³/min
Packing Speed ≤90 bags/min Dimensions 2610mm*1800mm*1800 mm
Inquire Now
Industries
Rotary premade pouch pick fill seal machine is widely used for various products in all kinds of pouches. With a maximum speed of 100 bags per minute, our machine can meet the demands of high-volume production.
Here're some industires you can use in:
  • Solid -- Candy, Red dates, Oatmeal, Chocolate, Cookies, Peanut, Green soybeans, Rock candy, Pastry, Commodity, Puffed food, etc.
  • Granule -- Crystal MSG, Granule medicine, Capsule, Seeds, Raw Chemistry material, Sugar, Chicken essence, Melon seed, Nuts, Pesticides, Fertilizer, Feed, etc.
  • Liquid -- Detergent, Yellow rice wine, Soy sauce, Rice vinegar, Juice, Tomato paste, Peanut paste, Fruit paste, Chili sauce, Bean sauce, etc.
  • Powder -- Flavoring, MSG, Milk powder, Glucose, Washing powder, Raw chemistry material, White sugar, Pesticides, Fertilizers, etc.
