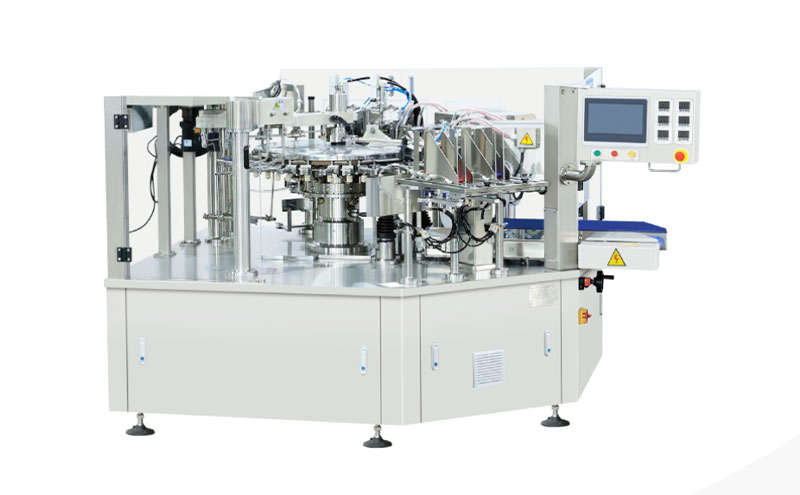

RZ8-S120 High Speed Double Bag Filling Sealing Machine

RZ8-S120 High Speed Double Bag Filling Sealing Machine
Bag Width Range 50-120 mm Weight 2500 kg
Bag Length Range 80-370 mm Total power 5.41 kw
Filling Range ≤ 500g Compress air ≥ 0.4 m³/min
Max Speed ≤ 130 bags/min Dimensions 1850 mm*2360 mm*1550 mm

The RZ8-S120 High Speed Double Bag Filling Sealing Machine, a cutting-edge solution designed for superior efficiency in packaging operations. The RZ8-S120 High Speed Double Bag Filling Sealing Machine offers impressive speeds of up to 130 bags per minute,makinig it an Ideal choice for diverse packaging needs, it handles various materials and pouch types with precision.

Inquire Now
Description

Built from 304 stainless steel, the RZ8-S120 High Speed Double Bag Filling Sealing Machine meets GMP hygiene standards, ensuring food safety.  This RZ8-S120 High Speed Double Bag Filling Sealing Machine is fully automated and features an intelligent detection system that fills and seals only properly opened pouches, significantly reducing waste.The RZ8-S120 High Speed Double Bag Filling Sealing Machine also recycles empty pouches for refilling, helping to cut costs and increase efficiency.



The RZ8-S120 High Speed Double Bag Filling Sealing Machine is equipped with a user-friendly PLC control system with HMI allows for easy operation. With dual independent controls, the RZ8-S120 High Speed Double Bag Filling Sealing Machine allows for quick transitions between single and double bag functions, streamlining maintenance and enhancing flexibility in operations.



Key features of the RZ8-S120 High Speed Double Bag Filling Sealing Machine include imported plastic bearings that require no oiling, an oil-free vacuum pump to maintain a clean environment, and a robust lubrication system for extended durability.



The RZ8-S120 High Speed Double Bag Filling Sealing Machine is the ultimate choice for businesses seeking an efficient, reliable, and hygienic packaging solution.

Main Specification

Equipment Model

RZ8-S120 High Speed Double Bag Filling Sealing Machine

Bag Size

W:50-120 mm;  L: 80-370 mm

Filling Range

≤ 500  g

Packing Speed

≤ 130 bags /min (depending on products and bags materials)

Weight

2500   kg

Dimensions (L*W*H)

1850mm*2360 mm*1550mm

Total Power

5.41   kw(Two heat seals, without vacuum pump)

Driving Power Source

380 V three-phase five line 50 HZ (other power can be customized)

Compress Air Requirement

≥ 0.4 m³/min (Compressed air is provided by the customer)

Product Video
Related Machinery
pro
Corn
Inquire Now
pro
RZ10-GS220E Rotary Packing Machine
Bag Width Range 100-220 mm Weight 1800 kg
Bag Length Range 150-370 mm Total power 9.47 kw
Filling Range ≤ 1000g Compress air ≥ 0.4 m³/min
Max Speed ≤ 45 bags/min Dimensions 1950 mm*1720 mm*2420 mm
Inquire Now
Industries
Rotary premade pouch pick fill seal machine is widely used for various products in all kinds of pouches. With a maximum speed of 100 bags per minute, our machine can meet the demands of high-volume production.
Here're some industires you can use in:
  • Solid -- Candy, Red dates, Oatmeal, Chocolate, Cookies, Peanut, Green soybeans, Rock candy, Pastry, Commodity, Puffed food, etc.
  • Granule -- Crystal MSG, Granule medicine, Capsule, Seeds, Raw Chemistry material, Sugar, Chicken essence, Melon seed, Nuts, Pesticides, Fertilizer, Feed, etc.
  • Liquid -- Detergent, Yellow rice wine, Soy sauce, Rice vinegar, Juice, Tomato paste, Peanut paste, Fruit paste, Chili sauce, Bean sauce, etc.
  • Powder -- Flavoring, MSG, Milk powder, Glucose, Washing powder, Raw chemistry material, White sugar, Pesticides, Fertilizers, etc.
Granuar & Solid
Liquid & Sauce
Powder
Bulks & Blocks
