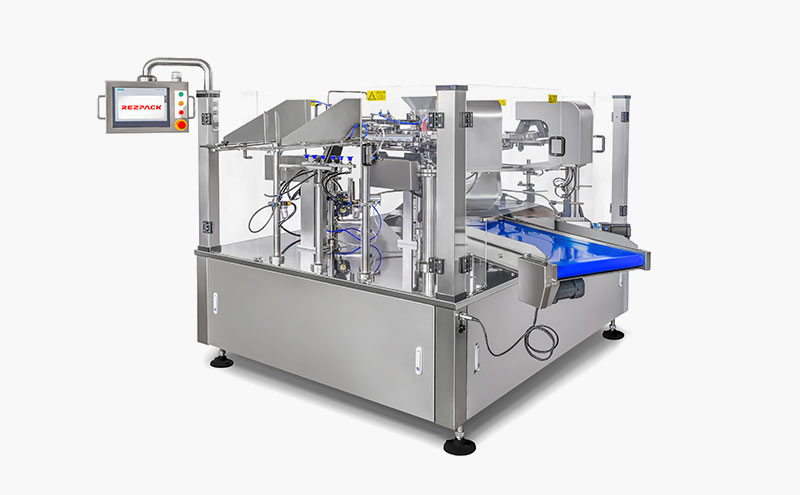

RZ8-400E Rotary Premade Pouch Bagger

Bag Width Range	240-400 mm	Weight	2500 kg
Bag Length Range	150-600 mm	Total power	3.62 kw
Filling Range	≤ 5000g	Compress air	≥ 0.4 m³/min
Max Speed	≤ 30 bags/min	Dimensions	2150 mm2020 mm1700 mm

Introducing the RZ8-400E Rotary Premade Pouch Bagger Machine, a powerful and versatile packaging solution designed for larger bags with a maximum width of 400mm and a filling capacity of up to 5000g. The RZ8-400E Rotary Premade Pouch Bagger Machine is compatible with a variety of pouch types, including flat, back-seal, stand-up, and zipper pouches, and it efficiently handles different product forms such as granules, powders, and liquids.

Inquire Now

Description

Efficiency and Reliability of the RZ8-400E Rotary Premade Pouch Bagger Machine

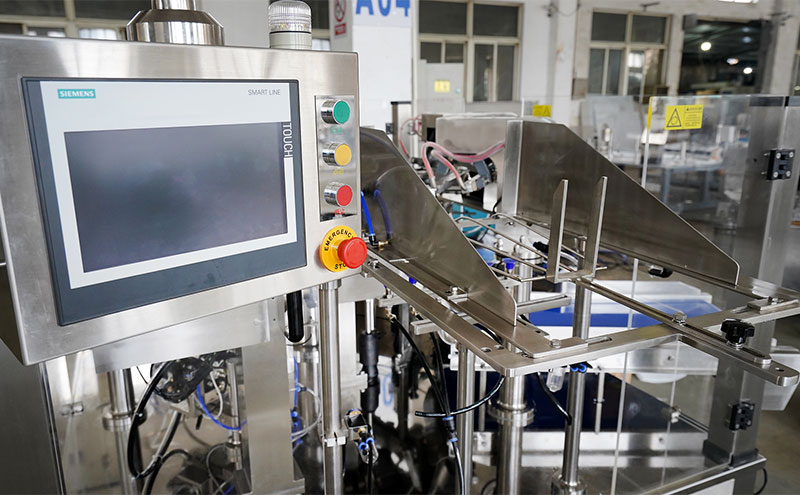

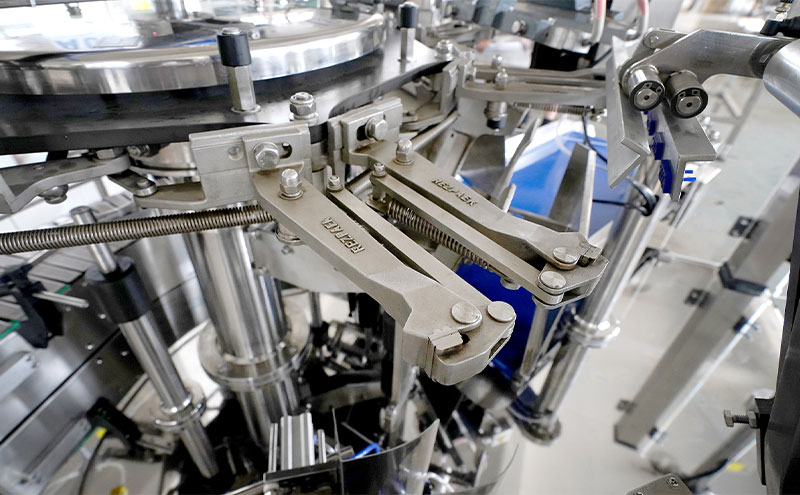

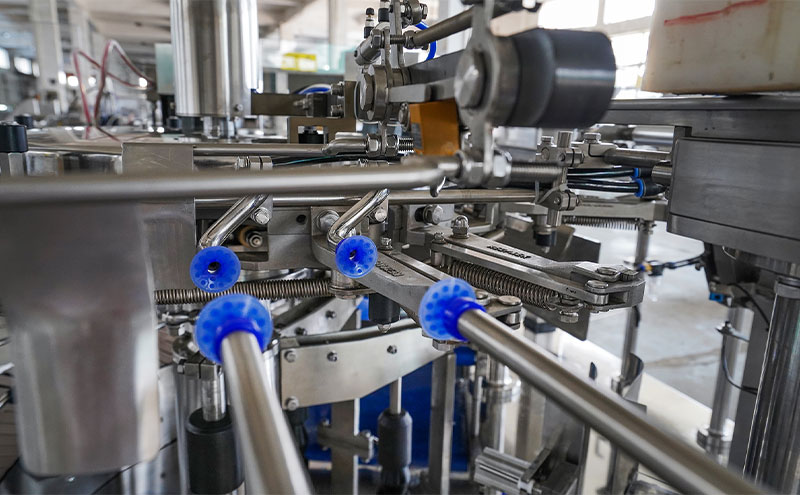

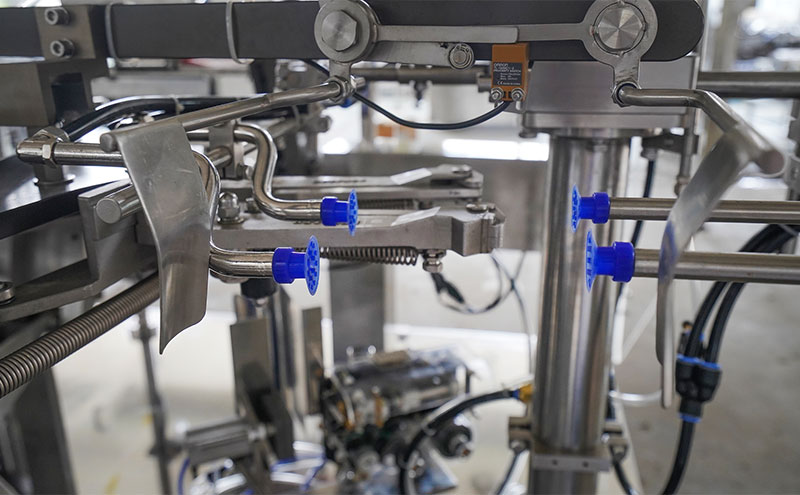

The RZ8-400E Rotary Premade Pouch Bagger Machine features eight working stations,accommodating pouch widths ranging from 240mm to 400mm, making it ideal for a wide range of packaging needs. Equipped with a grooved cam system, the RZ8-400E Rotary Premade Pouch Bagger Machine ensures precise pouch handling, while the PLC control and HMI interface provide intuitive operation and easy adjustments.Additionally, data logging capabilities in the RZ8-400E Rotary Premade Pouch Bagger Machine enable users to track and analyze production data to optimize efficiency and maintain high-quality control.

Advanced Features of the RZ8-400E Rotary Premade Pouch Bagger Machine

The RZ8-400E Rotary Premade Pouch Bagger Machine is designed with advanced features like the No Bag No Fill No Seal system, which prevents waste by ensuring that the machine only fills and seals properly positioned pouches. The wipe/wash down structure of the RZ8-400E Rotary Premade Pouch Bagger Machine simplifies cleaning and maintenance, making it both user-friendly and efficient.

RZ8-400E Rotary Pre-made Bag Bagging Machine High Adaptability

Highly adaptable, the RZ8-400E Rotary Premade Pouch Bagger Machine can be equipped with various filling systems, including liquid fillers, powder fillers, pickle fillers, and even a dust collector or bag making machine, depending on your production needs.

For businesses looking to enhance their packaging capabilities with a machine that offers flexibility, reliability, and advanced technology, the RZ8-400E Rotary Premade Pouch Bagger Machine is the perfect choice.

Equipment Model	RZ8-400E Rotary Premade Pouch Bagger Machine
Bag Size	W: 240-400 mm; L: 150-600 mm
Filling Range	≤ 5000 g
Packing Speed	≤ 30 bags/min (depending on products and bags materials)
Weight	2500 kg
Dimensions (LWH)	2150 mm2020 mm1700 mm
Total Power	3.62 kw（Two heat seals, including vacuum pump）
Driving Power Source	380 V three-phase five line 50 HZ (other power can be customized)
Compress Air Requirement	≥ 0.4 m³/min (Compressed air is provided by the customer)
