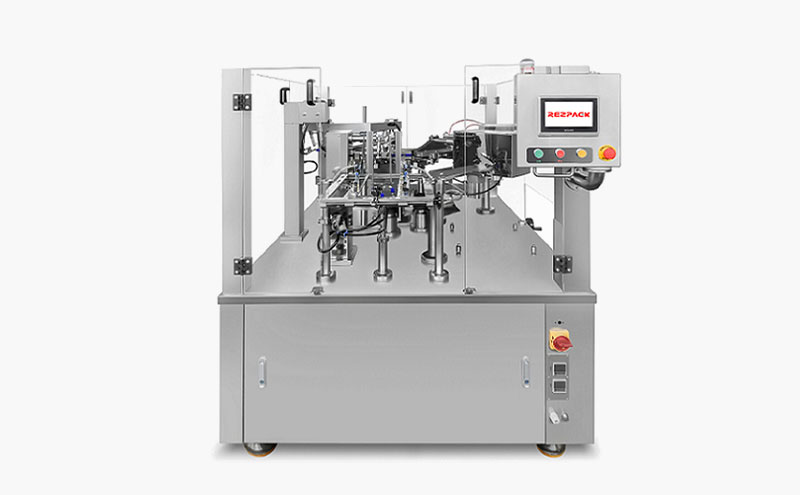

RZ8-240E Premade Pouch Packing Machine

RZ8-240E Premade Pouch Packing Machine
Bag Width Range 80-240 mm Weight 1500 kg
Bag Length Range 150-370 mm Total power 3.02 kw
Filling weight ≤ 1500g Compress air ≥ 0.4 m³/min
Max Speed ≤ 60 bags/min Dimensions 1860 mm*1520 mm*1550 mm

Introducing the RZ8-240E Premade Pouch Packing Machine, a top choice for businesses seeking to optimize their packaging operations with precision and ease. Equipped with an advanced PLC control system, this machine ensures accurate and consistent performance. The RZ8-240E Premade Pouch Packing Machine also features an intuitive human-machine interface, allowing operators to easily adjust settings and manage the entire packaging process efficiently.

Inquire Now
Description

Advanced Features of the RZ8-240E Premade Pouch Packing Machine

Equipped with state-of-the-art technology, the RZ8-240E Premade Pouch Packing Machine offers data recording capabilities, enabling users to monitor and analyze production data. This feature is crucial for improving efficiency and quality control. The RZ8-240E Premade Pouch Packing Machine ensures that businesses can keep a close eye on their packaging operations, making it easier to identify areas for improvement and maintain high standards of production.





Safety and Reliability with the RZ8-240E Premade Pouch Packing Machine

Safety and reliability are at the forefront of the RZ8-240E’s design. The machine is equipped with essential safety features, such as fault alarms, safety doors, and a No Bag No Fill No Seal system, all of which contribute to secure and uninterrupted operation. These elements ensure secure and uninterrupted operation, making the RZ8-240E Premade Pouch Packing Machine a reliable choice for any packaging line. Additionally, the groove cam and automatic sealing components of the RZ8-240E Premade Pouch Packing Machine further enhance productivity by simplifying the packaging process.



RZ8-240E Pre-made Bag Packaging Machine with Multiple Functions

The RZ8-240E Premade Pouch Packing Machine also boasts a variety of key features that elevate its functionality, including a pouch magazine, ribbon printer, wiping and rinsing structures, an automatic lubrication system, and an empty pouch recycling function. These elements not only make the machine user-friendly and easy to maintain but also significantly boost the overall efficiency and reliability of your packaging line.



By choosing the RZ8-240E Premade Pouch Packing Machine, businesses can streamline their packaging operations with a dependable and advanced solution. The machine's combination of precision, safety, and user-friendly features makes the RZ8-240E Premade Pouch Packing Machine an ideal investment for companies looking to enhance their packaging processes and achieve consistent, high-quality results.

Main Specification

Equipment Model

RZ8-240E Premade Pouch Packing Machine

Bag Size

W: 80-240 mm;  L: 150-370 mm

Filling Range

≤1500  g

Packing Speed

≤ 60 bags/min (depending on products and bags materials)

Weight

1500   kg

Dimensions (L*W*H)

1860 mm*1520 mm*1550 mm

Total Power

3.02 kw

Driving Power Source

380 V three-phase five line 50 HZ (other power can be customized)

Compress Air Requirement

≥ 0.4m³/min (Compressed air is provided by the customer)

Product Video
Related Machinery
pro
RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine
Bag Width Range 80-220 mm Weight 1800 kg
Bag Length Range 100-370 mm Total power 3.42 kw
Filling Range ≤ 1500g Compress air ≥ 0.4 m³/min
Max Speed ≤ 60 bags/min Dimensions 1950 mm*1740 mm*1550 mm
Inquire Now
pro
RAK825 Korea Design Pouch Packaging Machine
Bag Width Range 90-250 mm Weight 2700 kg
Bag Length Range 150-370 mm Total power 4 kw
Filling Range ≤ 2500g Compress air ≥ 0.4 m³/min
Max Speed ≤ 60 bags/min Dimensions 2200 mm*2050 mm*2000 mm
Inquire Now
Industries
Rotary premade pouch pick fill seal machine is widely used for various products in all kinds of pouches. With a maximum speed of 100 bags per minute, our machine can meet the demands of high-volume production.
Here're some industires you can use in:
  • Solid -- Candy, Red dates, Oatmeal, Chocolate, Cookies, Peanut, Green soybeans, Rock candy, Pastry, Commodity, Puffed food, etc.
  • Granule -- Crystal MSG, Granule medicine, Capsule, Seeds, Raw Chemistry material, Sugar, Chicken essence, Melon seed, Nuts, Pesticides, Fertilizer, Feed, etc.
  • Liquid -- Detergent, Yellow rice wine, Soy sauce, Rice vinegar, Juice, Tomato paste, Peanut paste, Fruit paste, Chili sauce, Bean sauce, etc.
  • Powder -- Flavoring, MSG, Milk powder, Glucose, Washing powder, Raw chemistry material, White sugar, Pesticides, Fertilizers, etc.
Inquire Now
