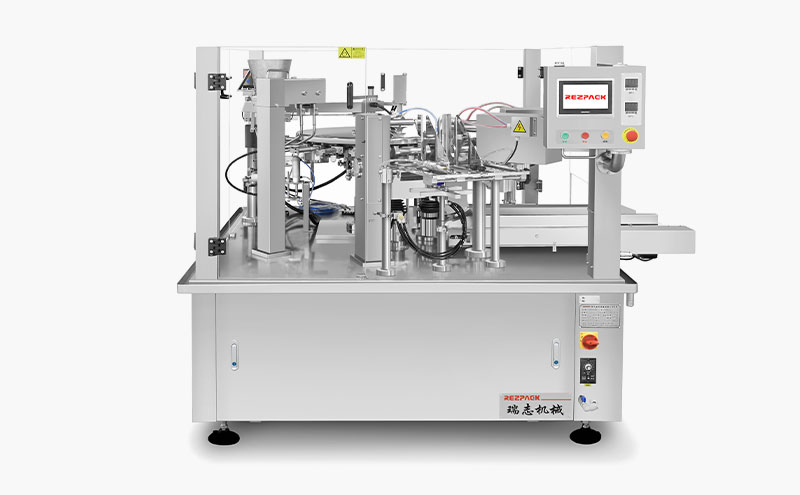

RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine

RZ10-220E High Speed Premade Pouch Fill Seal Machine

Bag Width Range	80-220 mm	Weight	1800 kg
Bag Length Range	100-370 mm	Total power	3.42 kw
Filling Range	≤ 1500g	Compress air	≥ 0.4 m³/min
Max Speed	≤ 60 bags/min	Dimensions	1950 mm1740 mm1550 mm

The RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine , a versatile and efficient packaging solution that excels in handling a wide array of materials, from grains and rice to nuts, snacks, and liquids. Compatible with various pouch types—including flat, back-seal, stand-up, and zipper pouches—this machine is designed to meet the diverse needs of modern packaging operations. Making the RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine the perfect choice for meeting the diverse needs of modern packaging operations.

Inquire Now

Description

Durability and Precision of the RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine

The RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine features a robust groove cam system made from durable 20CrMinTi, ensuring exceptional precision and longevity. An oil-free vacuum pump helps maintain a clean production environment, while the integrated lubrication system and waterproof design make maintenance and cleaning simple and efficient. With a built-in electrical box, the RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine further reduces maintenance complexity, ensuring consistent performance over time.

High-Speed Operation of the RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine

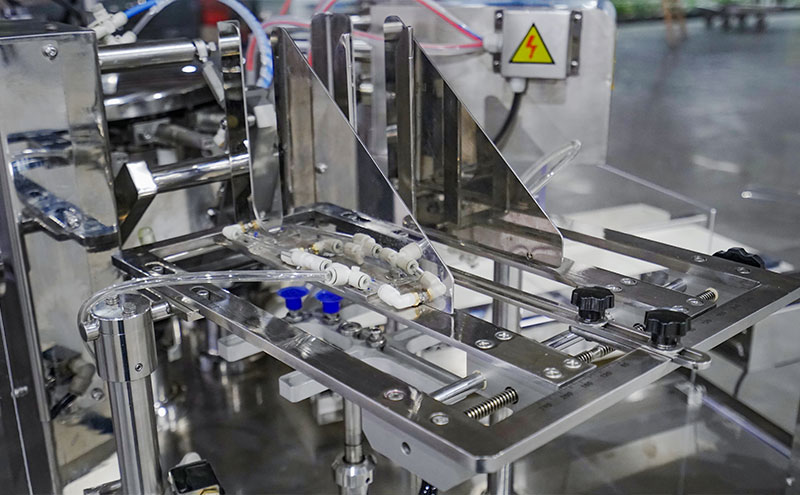

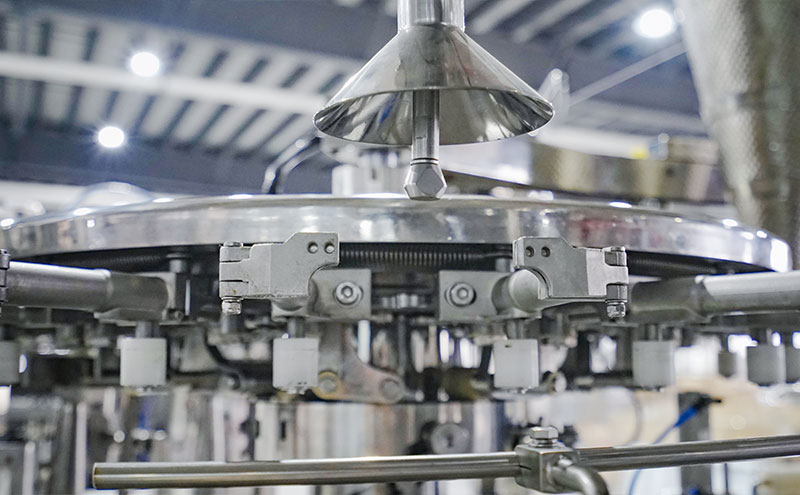

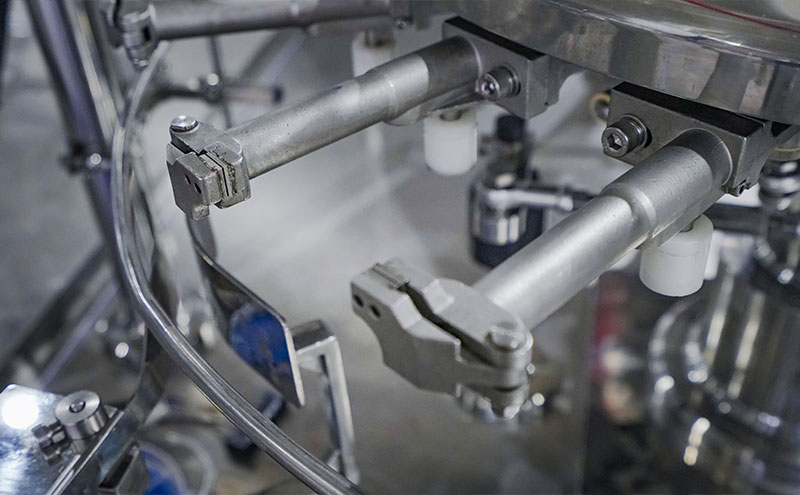

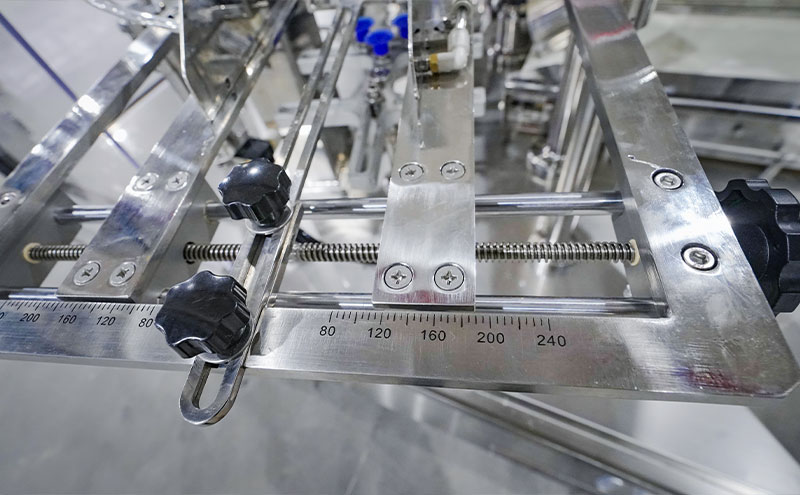

Operating at speeds of up to 60 pouches per minute, the RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine is equipped with ten working stations, accommodating pouch widths ranging from 55mm to 220mm. The user-friendly PLC touchscreen interface and intuitive controls make operation easy, while the handwheel allows for quick and precise adjustments to the clamp width.

Advanced Features of the RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine

To ensure optimal efficiency and reduce waste, the RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine is equipped with a No Bag No Fill No Seal system, which ensures that the machine only fills and seals pouches that are properly positioned. All product-contact parts of the RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine are made from 304 stainless steel and other food-grade materials, ensuring compliance with GMP hygiene standards.

By offering high-quality seals and enhancing the presentation of your products, the RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine is an excellent choice for packaging operations that prioritize speed, versatility, and reliability. The RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine combines advanced technology with user-friendly features, making it an essential addition to any modern packaging line.

Equipment Model	RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine
Bag Size	W: 80-220 mm; L: 100-370 mm
Filling Range	≤1500 g
Packing Speed	≤ 60 bags/min (depending on products and bags materials)
Weight	1800 kg
Dimensions (LWH)	1950 mm1740 mm1550 mm
Total Power	3.42 kw
Driving Power Source	380 V three-phase five line 50 HZ (other power can be customized)
Compress Air Requirement	≥ 0.4m³/min (Compressed air is provided by the customer)
