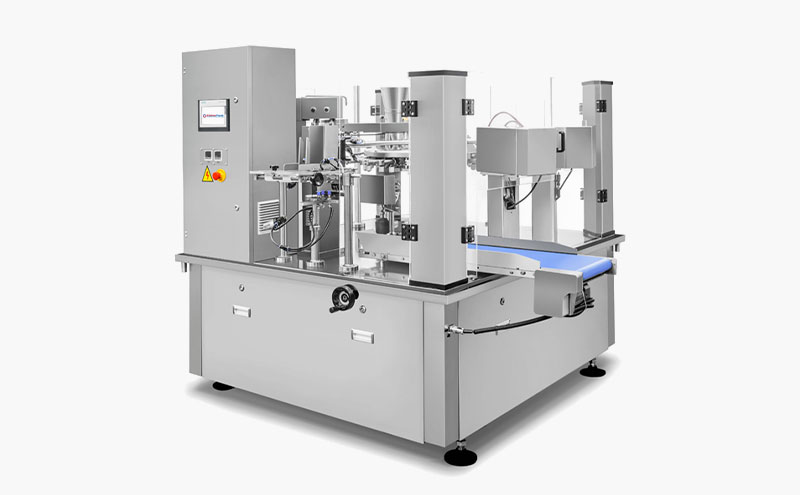

RZ10-160E Rotary Premade Pouch Pick Fill Seal Machine

RZ10-160E Rotary Premade Pouch Pick Fill Seal Machine
Bag Width Range 60-160 mm Weight 1450 kg
Bag Length Range 80-370 mm Total power 3.22 kw
Filling Range ≤ 500g Compress air ≥ 0.5 m³/min
Max Speed ≤ 100 bags/min Dimensions 1840 mm*1610 mm*1550 mm

The RZ10-160E High-Speed Premade Pouch Fill Seal Machine, a versatile and efficient solution designed to meet diverse packaging needs. Whether you’re packaging grains, nuts, snacks, liquids, or chestnuts, the RZ10-160E High Speed Premade Pouch Fill Seal Machine offers the flexibility and speed required to handle a wide range of materials with ease and precision.

Inquire Now
Description

User-Friendly Operation of the RZ10-160E High Speed Premade Pouch Fill Seal Machine

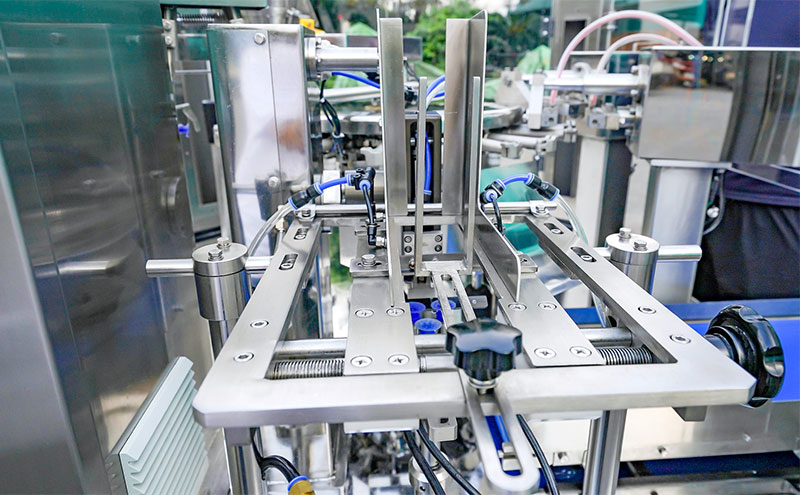

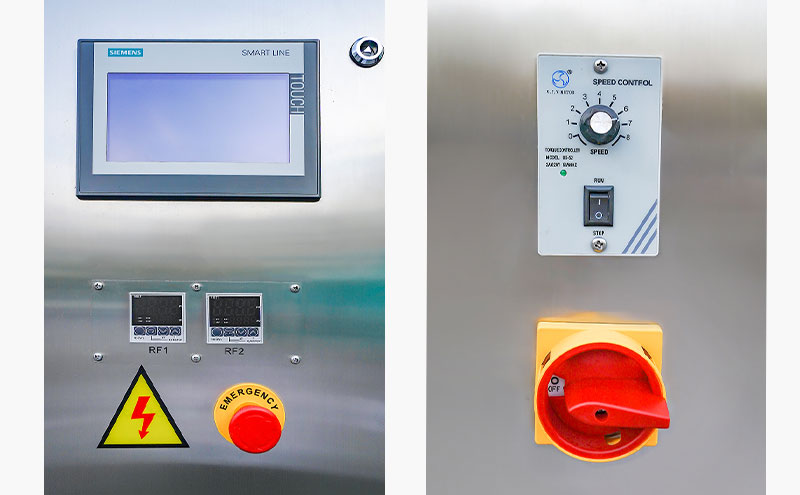

The RZ10-160E High-Speed Premade Pouch Fill Seal Machine stands out for its user-friendly operation, featuring a PLC touchscreen control and an intuitive human-machine interface. Adjusting the machine’s clamp is a breeze with the simple turn of the adjustment wheel. Making the RZ10-160E High Speed Premade Pouch Fill Seal Machine incredibly easy to use. Equipped with a comprehensive prevention system, the machine intelligently detects whether a pouch is properly opened before filling and sealing, reducing waste and conserving resources by recycling empty pouches for refilling.



Hygienic Design of the RZ10-160E High Speed Premade Pouch Fill Seal Machine

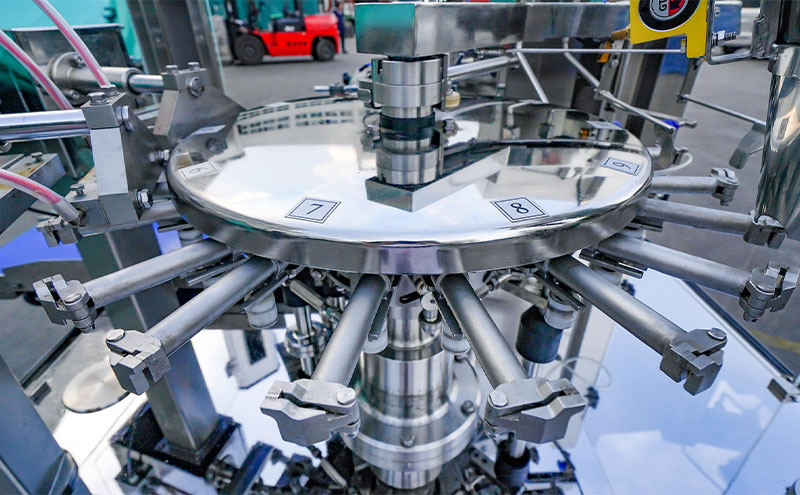

Designed with hygiene in mind, the machine is built with food-grade 304 stainless steel and other materials that meet GMP standards, ensuring product safety and quality, making the RZ10-160E High Speed Premade Pouch Fill Seal Machine an excellent choice for food-related industries. Its oil-free vacuum pump prevents environmental contamination, and the groove cam system, made from durable 20CrMinTi, provides exceptional hardness, precision, and stability. With 10 working stations, the machine delivers high sealing quality, elevating the standard of your product’s packaging.



Durability and Maintenance of the RZ10-160E High Speed Premade Pouch Fill Seal Machine

For businesses looking to elevate their packaging operations, the RZ10-160E High Speed Premade Pouch Fill Seal Machine offers a combination of speed, precision, and reliability. Its advanced features, user-friendly design, and commitment to hygiene make the RZ10-160E High Speed Premade Pouch Fill Seal Machine the perfect choice for ensuring high-quality, efficient packaging across a wide range of products.

Main Specification

Equipment Model

RZ10-160E High Speed Premade Pouch Fill Seal Machine

Bag size

W: 60-160 mm; L: 80-370 mm

Filling Range

≤500  g

Packing Speed

≤ 100 bags/min (depending on products and bags materials)

Weight

1450   kg

Dimensions (L*W*H)

1840 mm*1610 mm*1550 mm

Total power

3.22 kw

Driving Power Source

380 V three-phase five line 50 HZ (other power can be customized)

Compress air requirement

≥ 0.5 m³/min (Compressed air is provided by the customer)

Product Video
Related Machinery
pro
RZ10-GS220E Rotary Packing Machine
Bag Width Range 100-220 mm Weight 1800 kg
Bag Length Range 150-370 mm Total power 9.47 kw
Filling Range ≤ 1000g Compress air ≥ 0.4 m³/min
Max Speed ≤ 45 bags/min Dimensions 1950 mm*1720 mm*2420 mm
Inquire Now
pro
RZ10-220E Rotary Premade Pouch Pick Fill Seal Machine
Bag Width Range 80-220 mm Weight 1800 kg
Bag Length Range 100-370 mm Total power 3.42 kw
Filling Range ≤ 1500g Compress air ≥ 0.4 m³/min
Max Speed ≤ 60 bags/min Dimensions 1950 mm*1740 mm*1550 mm
Inquire Now
Industries
Rotary premade pouch pick fill seal machine is widely used for various products in all kinds of pouches. With a maximum speed of 100 bags per minute, our machine can meet the demands of high-volume production.
Here're some industires you can use in:
  • Solid -- Candy, Red dates, Oatmeal, Chocolate, Cookies, Peanut, Green soybeans, Rock candy, Pastry, Commodity, Puffed food, etc.
  • Granule -- Crystal MSG, Granule medicine, Capsule, Seeds, Raw Chemistry material, Sugar, Chicken essence, Melon seed, Nuts, Pesticides, Fertilizer, Feed, etc.
  • Liquid -- Detergent, Yellow rice wine, Soy sauce, Rice vinegar, Juice, Tomato paste, Peanut paste, Fruit paste, Chili sauce, Bean sauce, etc.
  • Powder -- Flavoring, MSG, Milk powder, Glucose, Washing powder, Raw chemistry material, White sugar, Pesticides, Fertilizers, etc.
Granuar & Solid
Liquid & Sauce
Powder
Bulks & Blocks
