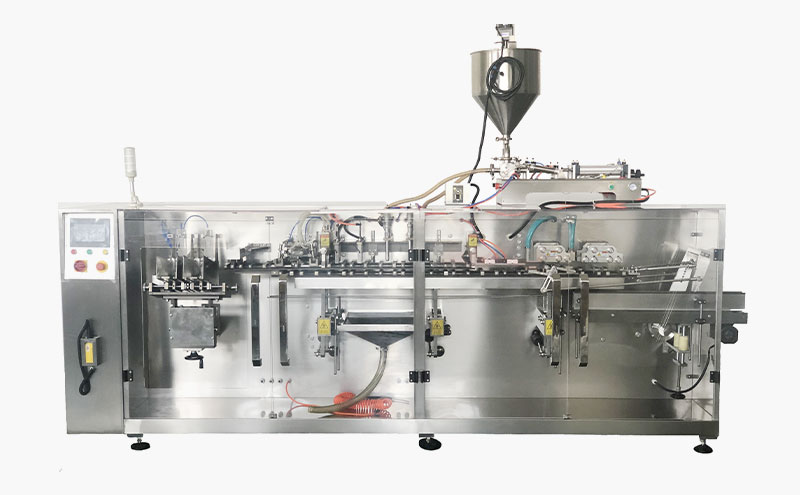

UN-250-2SP Horizontal Premade Pouch Packaging Machine

Horizontal Premade Pouch Packaging Machine UN-250-2SP

Bag Width Range	50-115 mm	Packaging accuracy	±1.5%
Bag Length Range	100-280 mm	Air Consumption	0.6 m³/min
Filing Range	300g	Air pressure value	0.6 Mpa
Max Speed	60-100 (bags/min)	Power	4kw,220V,380V,450V

Inquire Now

Description

Applications

Fill mask,cream etc into premade pouch. Optional for data printer, die-cut pouch etc.

Advantage

Horizontal single axis driven easy for maintenance & clean, PLC+Touch screen for convenient operations. If pouch not full open, no fill , no seal. Servo driven rotary pump filling, proof cream bridge.

Main Specification

Model	UN-250-2SP
Bag Width Range	50-115 mm
Bag Length Range	100-280 mm
Max Fill Range	300g
Max Speed	60-100 (bags/min)
Packaging accuracy	±1.5%
Air Consumption	0.6 m³/min
Air pressure value	0.6 Mpa
Power	4kw,220V,380V,450V
Machine Dimensions(LWH)	350010001390 mm
Machine Weight	1700 kg

Related Machinery

UN-250SP Horizontal Premade Bag Packing Machine

Bag Width Range	80-250 mm	Packaging accuracy	±1.5%
Bag Length Range	100-280 mm	Air Consumption	0.6 m³/min
Filing Range	1kg	Air pressure value	0.6 Mpa
Max Speed	30-45 (bags/min)	Power	4kw,220V,380V,450V

Inquire Now

UN-360SP Automatic Premade Bag Packing Machine

Bag Width Range	120-350 mm	Packaging accuracy	±1.5%
Bag Length Range	100-280 mm	Air Consumption	0.6 m³/min
Filing Range	1-3kg	Air pressure value	0.6 Mpa
Max Speed	15-35 (bags/min)	Power	6kw,220V,380V,450V

Inquire Now

Industries

Rotary premade pouch pick fill seal machine is widely used for various products in all kinds of pouches. With a maximum speed of 100 bags per minute, our machine can meet the demands of high-volume production.

Here're some industires you can use in:

◎ Solid -- Candy, Red dates, Oatmeal, Chocolate, Cookies, Peanut, Green soybeans, Rock candy, Pastry, Commodity, Puffed food, etc.
◎ Granule -- Crystal MSG, Granule medicine, Capsule, Seeds, Raw Chemistry material, Sugar, Chicken essence, Melon seed, Nuts, Pesticides, Fertilizer, Feed, etc.
◎ Liquid -- Detergent, Yellow rice wine, Soy sauce, Rice vinegar, Juice, Tomato paste, Peanut paste, Fruit paste, Chili sauce, Bean sauce, etc.
◎ Powder -- Flavoring, MSG, Milk powder, Glucose, Washing powder, Raw chemistry material, White sugar, Pesticides, Fertilizers, etc.

Granuar & Solid

Liquid & Sauce

Powder

Bulks & Blocks
