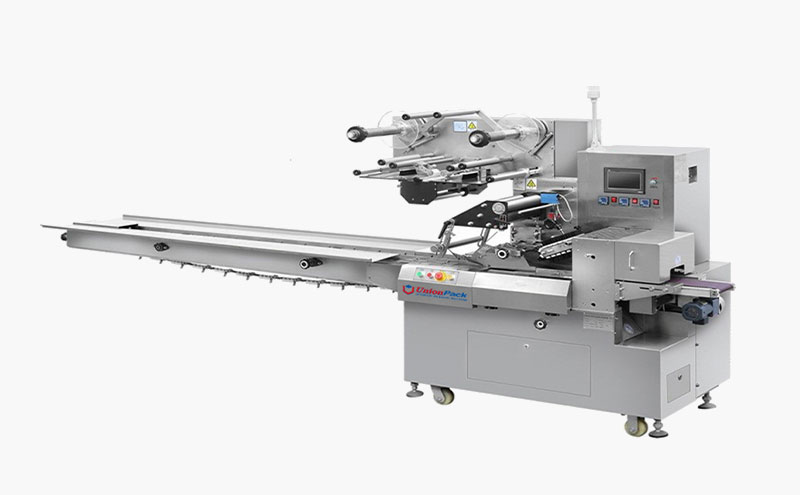

UN300ZS Plus Servo Flow Wrapper

Bag Length Range	170-400mm	Max Speed	30-140 bags/min
Bag Width Range	35-100mm	Power Supply	220V 50Hz
Bag Height Range	< 60mm	Total power	3kw
Max. Dia of Film	Ø350mm	Machine Weight	900kg

Inquire Now

Description

Compare with traditional UN300ZS plus servo flow wrapper, UN300ZS plus servo flow wrapper is controlled by servomotor, which brings stable convey belt speed, good package integrity and high productivity. In addition, The improved UN300 plus servo flow wrapper can realize the old and new film connection smoothly without stopping the machine, thus reduce the time of film replacement greatly improve efficiency. What’s more, UN300 plus adopts PC control screen, which makes operators easier to use. Therefore, the operation training is needless.

UN300 servo flow wrapper adopts up-film packing form. Varieties of composite films are available to package deckle-edge products and products with crumbs or burrs such as biscuit. Moreover, UN300ZS plus servo flow wrapper could package single or multiple products of various types including biscuit, chocolate, and cakes as well as cards, daily necessities, etc.

Main Specification

Max. Production Capacity		30-140bags/min(Single Cutter)	80-290(Double Cutter)	80-350(Three Cutter)
Shape of products		Square, rectangle, circular, ellipse and flake etc.
Packaging Range	Bag Length	170-400mm	80-300mm	Packaging Range
	Width	35-100mm
	Height	< 60mm	< 40mm
Max Width of Film		300mm
Max. Dia of Film		Ø350mm
Gross Power		3Kw
Power Supply		220V 50Hz
Gross Weight		900kg
Overall Dimension		4300×850×1550mm

Industries & Solutions

Rotary premade pouch pick fill seal machine is widely used for various products in all kinds of pouches. With a maximum speed of 100 bags per minute, our machine can meet the demands of high-volume production.

Here're some industires you can use in:

◎ Solid -- Candy, Red dates, Oatmeal, Chocolate, Cookies, Peanut, Green soybeans, Rock candy, Pastry, Commodity, Puffed food, etc.
◎ Granule -- Crystal MSG, Granule medicine, Capsule, Seeds, Raw Chemistry material, Sugar, Chicken essence, Melon seed, Nuts, Pesticides, Fertilizer, Feed, etc.
◎ Liquid -- Detergent, Yellow rice wine, Soy sauce, Rice vinegar, Juice, Tomato paste, Peanut paste, Fruit paste, Chili sauce, Bean sauce, etc.
◎ Powder -- Flavoring, MSG, Milk powder, Glucose, Washing powder, Raw chemistry material, White sugar, Pesticides, Fertilizers, etc.

Granule & Solid

Liquid & Sauce

Powder

Bulks & Blocks

Inquire Now
