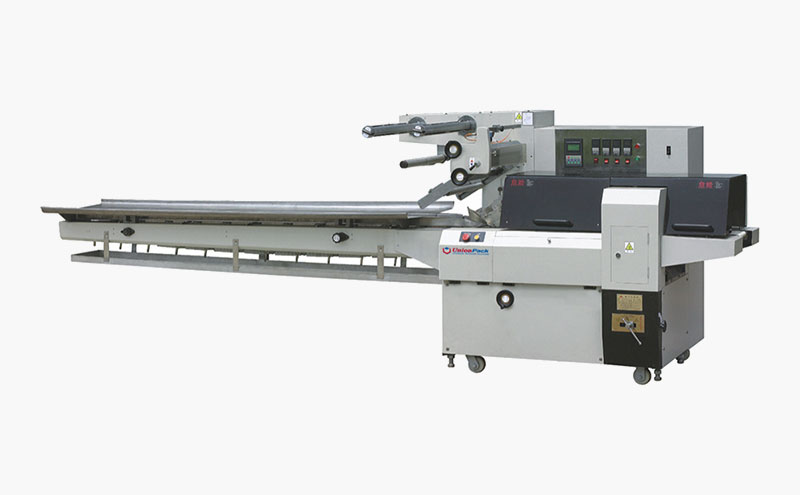

UN-630ZS Series Wrapping Equipment

UN-630ZS Series Wrapping Equipment
Bag Length Range 180~400mm Max Speed 15-80 bags/min
Bag Width Range 125~250mm Power Supply 220V 50Hz
Bag Height Range 10~60mm Total power 4Kw
Max. Dia of Film Ø350mm Machine Weight 950KG
Inquire Now
Description
Flow Pack Wrapping Machine, HFFS Wrapper for Flow Pack, UN-630ZS Series Wrapping Equipment



The UN-630ZS series wrapping equipment are designed for the packaging of large products such as hamburgers, instant noodles, household products, medical products, and more.

The UN-630ZS series wrapping equipment is a kind of rotating horizontal flow pack wrapping machine, or rather, it is a HFFS wrapper for flow packing lines. The maximum width of the packaging film can reach 450-600mm.

The packaging method of the UN-630ZS series wrapping equipment is up film packing. The automatic film gusseting device can reduce the replace film time by operators and empty machine time.

The UN-630ZS series wrapping equipment is made of stainless steel so that it is compatible with food packaging. This material can present better hygienic conditions when packing food. Moreover, compared with other types, the UN-630ZS series wrapping equipmenthas more stable operation, higher yield and long service life of 30 years.





Feature



  1. It is suitable for packing large products.
  2. Equipped with rotating cutting head, this machine has the advantages of fast cutting speed and high packaging efficiency.
  3. Heavy machine body, stable operation and high productivity





Optional devices



  1. Date coder machine
  2. Air pump
  3. Hang hole cutter
Main Specification

Max. Production Capacity

15-80 bag/min(Rotary end seal)

Max Width of Film

630mm

Max. Dia of Film

Ø350mm

Packing Range

Length

180~400mm

Width

125~250mm

Height

10~60mm

Gross Power

4 Kw

Power Supply

220V 50Hz

Overall Dimension

4000×1250×1500mm

Gross Weight

950KG

Product Video
Industries & Solutions
Rotary premade pouch pick fill seal machine is widely used for various products in all kinds of pouches. With a maximum speed of 100 bags per minute, our machine can meet the demands of high-volume production.
Here're some industires you can use in:
  • Solid -- Candy, Red dates, Oatmeal, Chocolate, Cookies, Peanut, Green soybeans, Rock candy, Pastry, Commodity, Puffed food, etc.
  • Granule -- Crystal MSG, Granule medicine, Capsule, Seeds, Raw Chemistry material, Sugar, Chicken essence, Melon seed, Nuts, Pesticides, Fertilizer, Feed, etc.
  • Liquid -- Detergent, Yellow rice wine, Soy sauce, Rice vinegar, Juice, Tomato paste, Peanut paste, Fruit paste, Chili sauce, Bean sauce, etc.
  • Powder -- Flavoring, MSG, Milk powder, Glucose, Washing powder, Raw chemistry material, White sugar, Pesticides, Fertilizers, etc.
Granule & Solid
Liquid & Sauce
Powder
Bulks & Blocks
Inquire Now
