Bag Length Range | 150-450mm | Max Speed | 50-190 bags/min |
Bag Width Range | 25-110mm | Power Supply | 220V 50-60Hz |
Bag Height Range | < 50mm | Total power | 3kw |
Max. Dia of Film | Ø350mm | Machine Weight | 750kg |
Bag Length Range | 150-450mm | Max Speed | 50-190 bags/min |
Bag Width Range | 25-110mm | Power Supply | 220V 50-60Hz |
Bag Height Range | < 50mm | Total power | 3kw |
Max. Dia of Film | Ø350mm | Machine Weight | 750kg |
solid products such as hamburgers, instant noodles, bread, mechanical parts, and more.

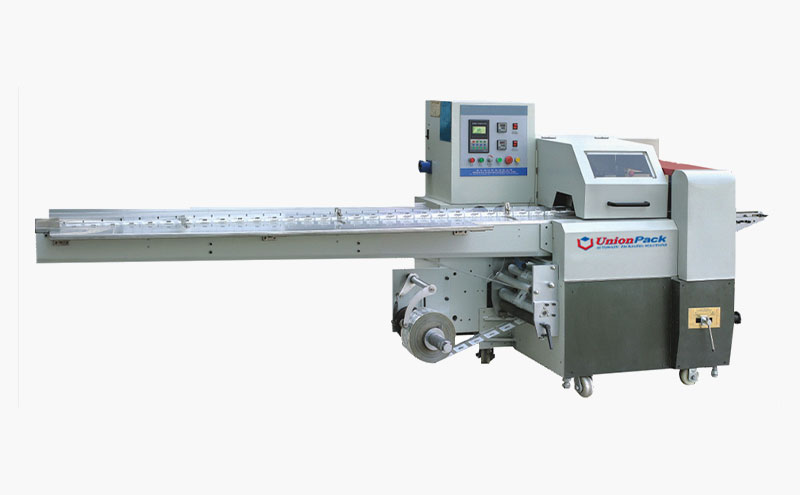

The UN-280ZS flow wrapper is the shrink version of the UN-580ZS. The maximum film width is 300mm. It is an economic multi-functional HFFS wrapping machine.
Adopting the low film packing method, the UN-280ZS flow wrapper is suitable for the packaging of piece parts, goods with water and other irregular products. The production capacity is 50-190 bags/min. The bag length is 150-450mm, and the width is 25-110mm.
1.Date coder
2.Air pump
3.Rotating head reverse function
Production capacity |
50-190 bags/min |
|||||
Range of packaging |
Bag length |
150-450mm |
70-260mm |
30-130mm |
||
Width |
25-110mm |
25-100mm |
25-80mm |
|||
Height |
< 50mm |
< 50mm |
< 50mm |
|||
Maximum diameter of packaging film |
Ø350mm |
|||||
Maximum width of packing film |
300mm |
|||||
Total power |
3Kw |
|||||
Power supply |
220V 50-60Hz |
|||||
Total weight |
750kg |
|||||
Dimensions |
3200-4700*1050*1450mm |

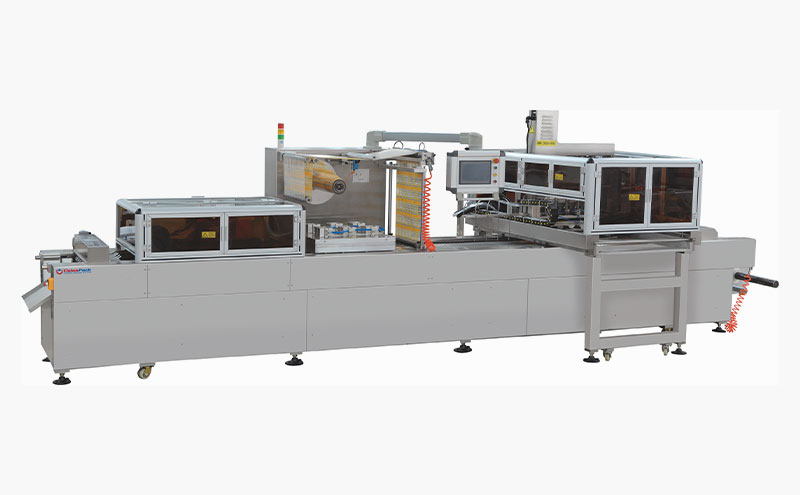

Width of upper film | 498 mm | Vacuum | ≤ 200 Pa |
Width of lower film | 523 mm | Compress air | ≥ 0.6 Mpa |
Speed | 3-4 p/min | Capacity | 14-20 KW |
Power | 380 V/50 Hz | Dimensions | 8000×1950×2050 mm |
Bag Length Range | 170-400mm | Max Speed | 30-140 bags/min |
Bag Width Range | 35-100mm | Power Supply | 220V 50Hz |
Bag Height Range | < 60mm | Total power | 3kw |
Max. Dia of Film | Ø350mm | Machine Weight | 900kg |
