Bag Length Range | 12-40mm | Max Speed | 1200 bags/min |
Bag Width Range | 12-30mm | Power Supply | 220V 50Hz |
Bag Height Range | 5-18mm | Total power | 4Kw |
Finished Bag Length | 50-80mm | Machine Weight | 1400kg |
Bag Length Range | 12-40mm | Max Speed | 1200 bags/min |
Bag Width Range | 12-30mm | Power Supply | 220V 50Hz |
Bag Height Range | 5-18mm | Total power | 4Kw |
Finished Bag Length | 50-80mm | Machine Weight | 1400kg |

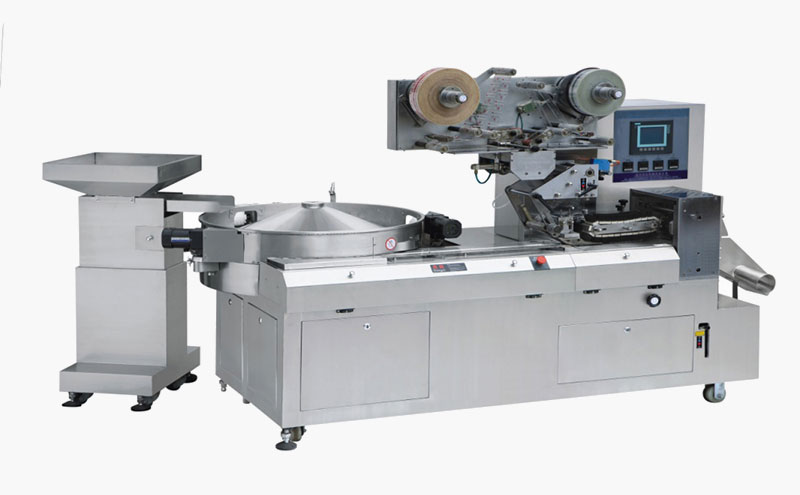

The UN-1200ZS series flow pack packaging equipment is designed for packaging multiple small products in one package such as candy.
UN-1200ZS series flow pack packaging equipment is a kind of up-film packing (HFFS) horizontal flow wrapper. With a vibrating bowl feeder and bowl feeder, this machine is suitable for the packing of small regularly-shaped products.
It adopts a rotating cutting device with six cutting heads. The cutting operation and packaging operation are carried out simultaneously, which improves production efficiency significantly. The maximum packaging speed can reach 1000bags/min. 1-5 candies can be packed each time.
The candy may fall or deviate direction in the packaging process. We provide empty product blowers to guarantee stable transportation and high yield.
This machine can be equipped with an infrared sensor that can inspect the packaging process at any moment to guarantee the integrity of the packaging. This device can save pack film and reduce the idling rate.
The vertical sealing device of the UN-1200ZS series flow pack packaging equipment is equipped with a traction wheel and one heat welding wheel, which can guarantee high preheat speed and the integrity of the packaged products, maximizing the yield.
Max. Production Capacity | 1200 bags/min | |
Shape of products | Square, ellipse ,Oblate , Globular, Plum Blossom-Shaped | |
Packaging Range | Length | 12-40mm |
Width | 12-30mm | |
Height | 5-18mm | |
Length of Finished bag | 50-80mm | |
Gross Power | 4 Kw | |
Power Supply | 220V 50Hz | |
Gross Weight | 1400kg | |
Overall Dimension | 2500×1350×1720mm | |
Packing Material | OPP/CPP/PET Metallized film, Al-plastic film, Paper-rubber complex |
Bag Length Range | 20-40/40-80/80-160 mm | Max Speed | 500/min |
Bag Width Range | 12-20 (Ф8-13) mm | Power Supply | 220V 50Hz |
Bag Height Range | 3-18mm | Total power | 4.6Kw |
Overall Dimension | 2250*900*1550mm | Machine Weight | 1250kg |
Bag Length Range | 12-50mm | Production Capacity | 1400bags/min |
Bag Width Range | 12-30mm | Power Supply | 380v 50HZ 3P/AC |
Bag Height Range | 5-18mm | Total power | 6kw |
Finished Bag Length | 50-120mm | Machine Weight | 1500kg |
