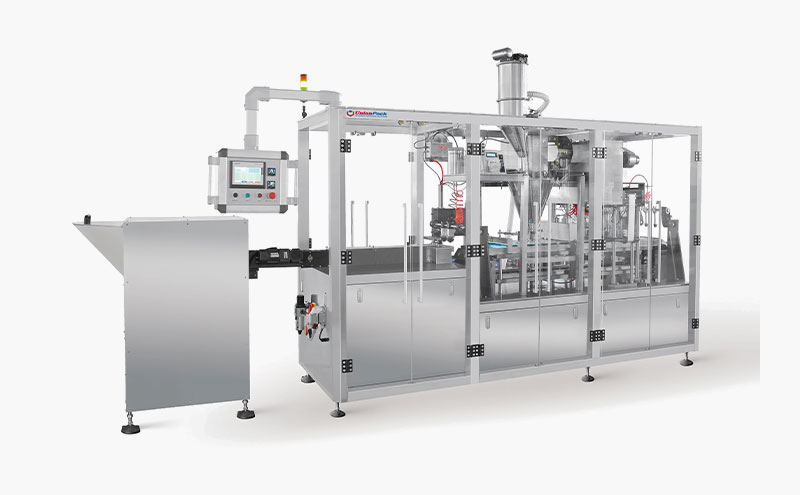

Linear Motion Filling Sealing Machine

Capacity	35-70 capsules/m	Air Supply	≥0.6Mpa
Filling Accuracy	±1%	Weight	900 Kg

Inquire Now

Description

Characteristics

Original Designed Empty Capsules Storage, Which Could Load A Lot Of Capsules Automatically. It Saves Labor Greatly

Extremely Precise Dosing Unit To Assure Correct Product Weight

Product Compacting And Capsule Rim Cleaning System

Easy Cleaning And Product Change, Even Between Coffee And Soluble Powders

Possibility To Handle Different Capsule Styles With Easy Size Changeover

Aroma Doser To Drop Liquid Or Granule Flavors Into The Capsule

Upgrade To Full Servo Running Motio, It Consumes Very Little Pressure Air And Is Very Quiet When Running At High Speed

Minimal Maintenance Requirement

Main Specification

Model	HT-KJ100	HT-KJ200	HT-KJ400	HT-KJ50	HT-KJ20
Parts Contact With Product	Foodsafe Stainless Steel AISI 304
Capacity	35-70 capsules/m	60-100 capsules/m	100-200 capsules/m	15-40 capsules/m	10-20 capsules/m
Filling Accuracy	±1%
Power	1/3Phase 220/380V 50/60HZ
Air Supply	≥0.6Mpa
Certification	CE, UL, ISO, FDA, GMP, CSA Compliant
Weight	900 Kg	1200 Kg	1600 Kg	600 Kg	200 Kg
Dimension（mm）	1600×870×1900	3600×900×1900	3600×1200×1900	900×1000×1900	700×900×1700

Industries

Rotary premade pouch pick fill seal machine is widely used for various products in all kinds of pouches. With a maximum speed of 100 bags per minute, our machine can meet the demands of high-volume production.

Here're some industires you can use in:

◎ Solid -- Candy, Red dates, Oatmeal, Chocolate, Cookies, Peanut, Green soybeans, Rock candy, Pastry, Commodity, Puffed food, etc.
◎ Granule -- Crystal MSG, Granule medicine, Capsule, Seeds, Raw Chemistry material, Sugar, Chicken essence, Melon seed, Nuts, Pesticides, Fertilizer, Feed, etc.
◎ Liquid -- Detergent, Yellow rice wine, Soy sauce, Rice vinegar, Juice, Tomato paste, Peanut paste, Fruit paste, Chili sauce, Bean sauce, etc.
◎ Powder -- Flavoring, MSG, Milk powder, Glucose, Washing powder, Raw chemistry material, White sugar, Pesticides, Fertilizers, etc.

Granuar & Solid

Liquid & Sauce

Powder

Bulks & Blocks

Inquire Now

Bag Width Range	120-500 mm	Packaging accuracy	±1.5%
Bag Length Range	150-820 mm	Air Consumption	0.6 m³/min
Filing Range	1-5kg	Air pressure value	0.6 Mpa
Max Speed	3-15 bags/min	Power	4kw, 220V, 380V, 450V
