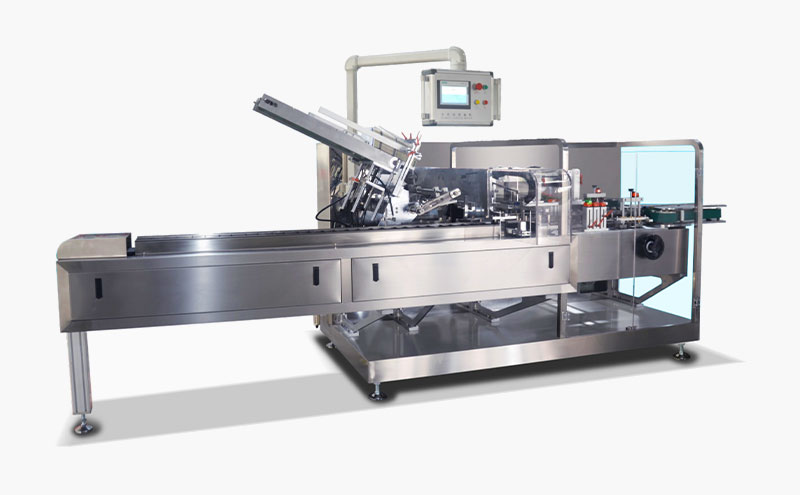

UN-130DZH Carton Packing Machine

UN-130DZH Carton Packing Machine
Encasing Speed 30-120 Boxes/min Power supply AC220V/380V  50Hz
Quality requirement 250-350 g/㎡ Total power 1.5 KW
Working pressure ≥ 0.6 Mpa Overall dimension 4500×1550×1800mm
Air consumption 20 m³/h Machine weight 1500 kg
Inquire Now
Description
Introduction and Features



The UN-130DZH Carton Packing Machine is a fully automatic packaging machine designed for a variety of industries, including pharmaceuticals, food, cosmetics, and others. It is characterized by its stainless steel construction, closed-circuit and pneumatic system, and user-friendly design. The machine's compact and ergonomic structure allows for easy operation, maintenance, and cleaning.

The UN-130DZH Carton Packing Machine's body is enclosed in high-quality 304 stainless steel casing, with the operating area featuring an aluminum alloy and toughened glass combination protective door for operator safety. The machine utilizes a crank-slider mechanism to place the boxes horizontally, and a rotating chain intermittently transports the boxes and products in an inverted position for packaging. The fixed box storage device can accommodate up to 300 boxes, ensuring a continuous supply of boxes.

The UN-130DZH Carton Packing Machine has a user-friendly interface, with a touch screen panel that enables operators to adjust the program settings and monitor the machine's production status. The machine is equipped with a PLC automatic monitoring system and photoelectric detection mechanism, allowing for the detection of box and material shortages, stuck boxes, and overloaded feeding, among others. The machine's mechanical overload protection devices ensure self-protection and reduce machine damage.

The UN-130DZH Carton Packing Machine can reliably package products with stable or regular shapes and sizes within a certain range into specific-sized boxes, which are then sealed and sent out. It can serve as a terminal machine for upstream devices or as an upstream machine for downstream devices such as bundling and box packing. The machine can also function as a standalone device.

The UN-130DZH Carton Packing Machine is designed to accommodate various product specifications, with a minimal number of mold types and short production cycles for easy assembly and debugging. It is suitable for both large-scale production and small-batch, multi-variety production needs.





Environmental Conditions

a. Ambient Temperature: 10-30°C

b. Power Supply Voltage: 180V/50Hz

c. Air Pressure: 0.5-0.7Mpa

d. Air Flow: 15-20 m3/h





Working Conditions



Carton Material: 250-350/g㎡ white cardboard, 250-400/g㎡ grey cardboard



1.Working conditions

Carton paper quality 250~350/g㎡ white cardboard, 250~400/g㎡ gray cardboard

The quality of the packaging boxes directly affects the packaging quality and the normal operation of the equipment. Thus, the machine has strict requirements for the quality of the packaging boxes, including the material quality and the manufacturing process.

Main Specification

Model

UN-130DZH Automatic Cartoning Machine

Encasing Speed

30-120 Boxes/min

Box

Quality requirement

250-350 g/㎡

Dimension range

(50-260) × (15-120) × (15-65) mm (L×W×H)

The dimensional range of all boxes that can be packed

(45-500) × (15-280) × (15-120) mm (L×W×H)

Manual quality requirement

60-80 g/㎡

Compressed air

Working pressure

≥ 0.6 Mpa

Air consumption

20 m³/h

Power supply

AC220V/380V  50Hz

Total power

1.5 KW

Overall dimension

4000 × 1550 × 2000 mm (L×W×H)

Machine weight

1500 kg
